TBA9000

Work station with plastic work tray

  • All-in-one service center is designed for bike shop, professional cycling team, show room or home workshop.
classic

Products Specification

A complete set of high quality and professional tools includes freewheel turner / freewheel remover, bottom bracket tool, pedal wrench, crank tools, tire levers, hub cone wrenches, Y wrenches, torque wrenches / bit sockets, chain rivet extractors, cable cutter, spoke wrenches, screwdrivers, cleaning tools, apron, frame & fork tools and everything you could think of is all in this work station.

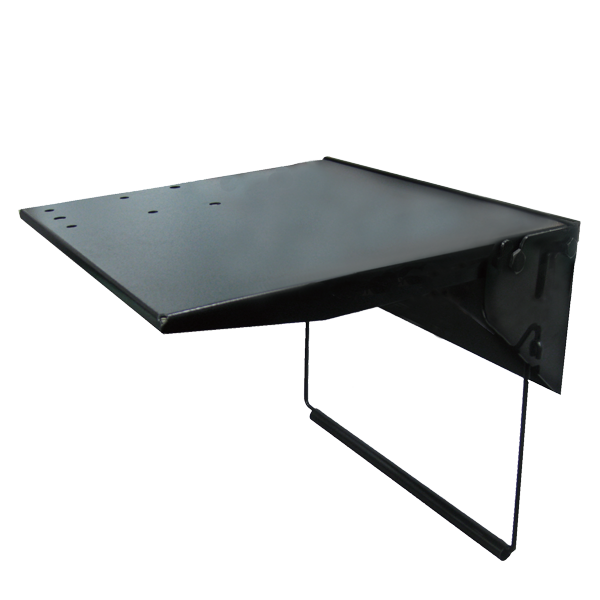

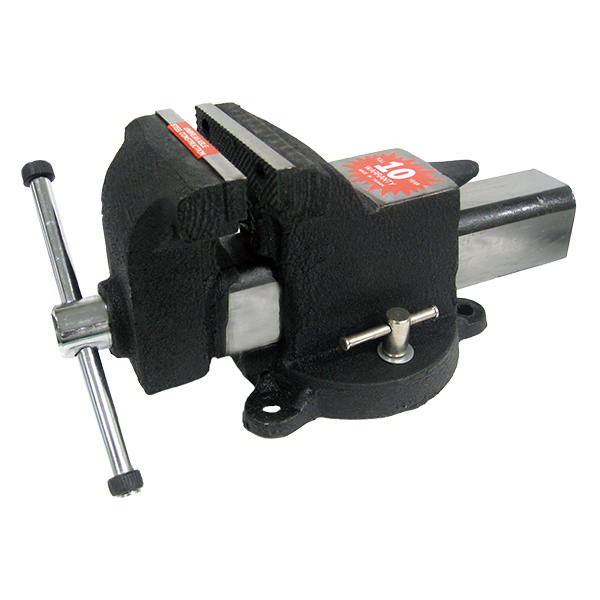

Three optional accessories: vise TB-1918, iron shelf TB-1919 and work stand TB-1971.



1st LAYER:


•A1:

1-Freewheel remover with guide pin, for Shimano®, SunRace®, SRAM®, Chris King®, SunTour® and similar cassette lockrings.

1-Freewheel turner, for 5 to 10 speed cassettes.

1-Lockring wrench, for most lock-rings of bottom bracket.

1-Bottom bracket wrench, for Shimano® Hollowtech II, Truvativ® GXP, FSA® MegaExo, Campagnolo® Ultra-TorqueTM, TOKEN®, and similar external B.B. cups with 16 notches.

1-Crank installation tool to remove and install crank arm adjustment cap.

1-Bottom bracket tool & freewheel remover, for Campagnolo® B.B. cups and Campagnolo® cassette lockrings ( RecordTM, ChorusTM and AthenaTM ).

1-Cartidge B.B. tool with guide pin, for Shimano®, ISIS Drive® splined 20-tooth bottom bracket cups, FSA®, Race Face®, Truvativ® and TOKEN®

•A2:

8-T/L handle hex wrench, 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm.



2nd LAYER:


•B1:

1-12" adjustable wrench. 1-Freewheel remover with guide pin, for Shimano®, SunRace®, SRAM®, Chris King®, SunTour®, and other cassette lockrings.

1-Freewheel remover, for Shimano® MF freewheel.

1-Freewheel remover, for 4-notch BMX & single-speed freewheels.

1-Cartridge B.B. tool, for Shimano®, ISIS Drive® splined 20-tooth bottom bracket cups, FSA®, Race Face®, Truvativ® and TOKEN®

1-Cartridge B.B. tool, for Shimano®, Truvativ®, SRAM® and all ISIS Drive® 8-notch B.B. cups.

1-B.B. tool, for Shimano® Hollowtech II, Truvativ® & FSA® MegaExo & Campagnolo® Ultra-Torque, TOKEN® and many other external bearing crankset bottom brackets.

1-1/2" Dr. bit socket 10 mm hex wrench for Campagnolo®

8-Combination wrench, size: 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 mm.

•B2:

4-Headset wrench, size: 30 / 32 mm, 36 / 40 mm, 15 / 32 mm, 32 / 36 mm.

1-Double-ended bottom bracket lockring hook spanner.

2-Double-ended wrench, size: 8 / 10 mm, 9 / 11 mm.

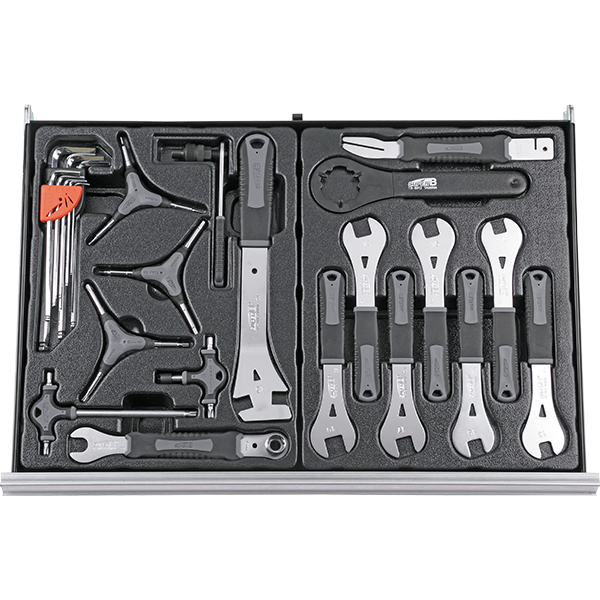

3rd LAYER:


•C1:

1-Professional pedal wrench 15 mm.

1-Multi-function pedal wrench 15 mm with 14 / 15 mm box wrench.

1-T-shaped wrench, 3-ended with T30 / hex 5 mm / T30.

1-T-shaped chainring nut wrench, 3-ended with T40 / hex 6 mm / chainring nut wrench.

1-2 in 1 cotterless crank tool, for standard square, splined Shimano® octalink and ISIS Drive®

3-Y wrench, size: hex 2 / 2.5 / 3 mm, hex 4 / 5 / 6 mm, T25 / T30 / T40.

8-Hex key wrench w/ ball end, size: 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm.

•C2:

7-Professional hub cone wrench, size: 13 / 14 / 15 / 16 / 17 / 18 / 19 mm.

1-B.B. wrench for installation and removal of Campagnolo® ( VeloceTM, MirageTM, CentaurTM, DaytonaTM and AvantiTM ) cartridge bottom brackets.

1-Rotor truing fork.



4th LAYER:


•D1:

4-Frame tap, size: 3 mm x 0.5; 5 mm x 0.8; 6 mm x 1.0; 10 mm x 1.0

4-Pedal tap, size: 1/2" x 20 ( L & R ), 9/16" x 20 ( L & R ).

1-Inner cable puller. 1-Professional cable & housing cutter.

1-Chain rivet extractor for 1/8" to 3/16" BMX and single speed chain.

1-Chain rivet extractor for 10 & 11 speed chain.

1-Chain rivet extractor for 8, 9 & 10 speed chains, with 1 spare pin and 1 chain hook.

1-2 in 1 chain checker and chain hook.

1-Replacement pins set for Super B chain rivet extractors (10 pcs / kit).

•D2:

4-Spoke wrench, size: 3.2 / 3.3 / 3.5 mm and for Mavic® 6 splines of integrated nipples with 5.65 mm outside diameter and 7 mm thread nipple.

2-Professional tire lever, made of high grade steel.

1-Aero spoke key, size: 0.9 / 1.1 / 1.3 / 1.9 mm.

1-Spoke wrench, size: for Shimano® wheel system 4.3 & 4.4 mm nipples.

1-Spoke wrench, size: for Mavic® 9 mm threaded eyelets and 7 mm integrated nipples.

4-Screwdriver, size: Phillips 0 / 2 and slotted 3 / 6.

4-Nipple tool, size: hex 4.8 mm, hex 5.5 mm, square 3.2 mm and slotted end for conventional slit nipple.

3-Tire lever.

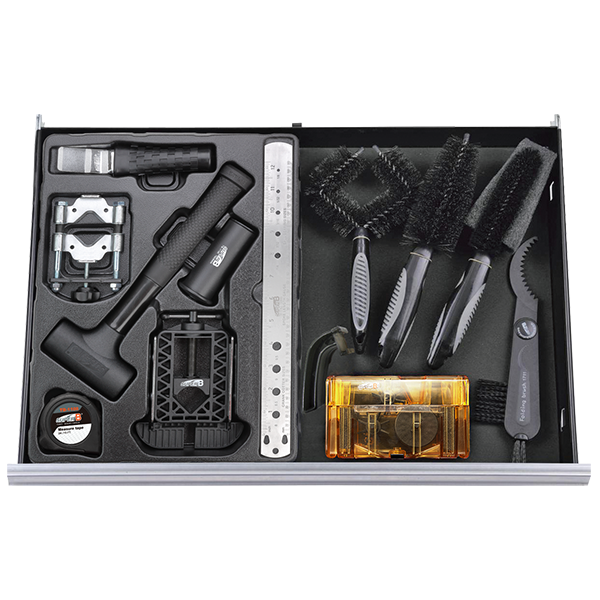

5th LAYER:


•E1:

1-Star nut setter for 1" & 1-1/8" threadless headsets.

1-Dead blow hammer.

1-Measure tap, 3 m / 10 ft.

1-Spoke, bearing and crank cotter gauge.

1-Oversized tube cutting guide.

1-Crown race remover for 1", 1-1/8", 1-1/4", 1-1/2" forks.

1-Brake piston press for speeding up pad replacement.

•E2:

1-Bike folding brush.

3-Bike brush.

1-Chain cleaner.

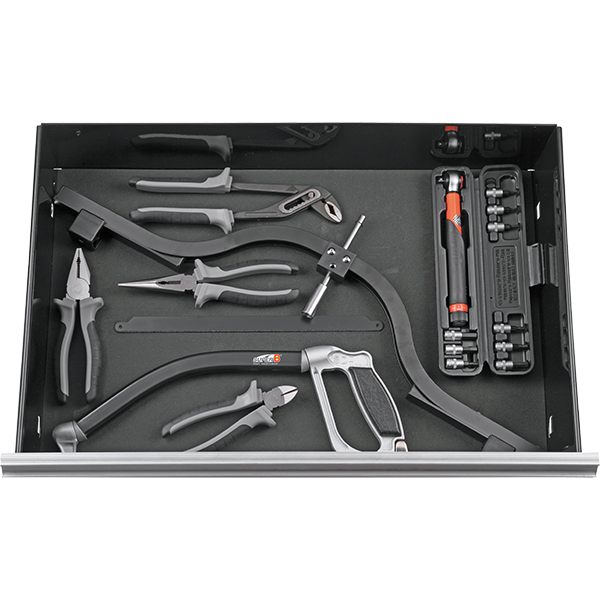

6th LAYER:


•F:

1-Wheel alignment gauge for 16" to 26" wheels.

1-Hacksaw, with a steel blade 12"( 300 mm ).

1-Hacksaw blade for cutting carbon components.

1-1/4" Dr. dial-adjust torque wrench 3~15 Nm, with bit sockets: hex 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm, T25.

1-6" Diagonal cutting nippers.

1-7" Combination pliers.

1-8" Long nose pliers.

1-10" Waterpump box joint.

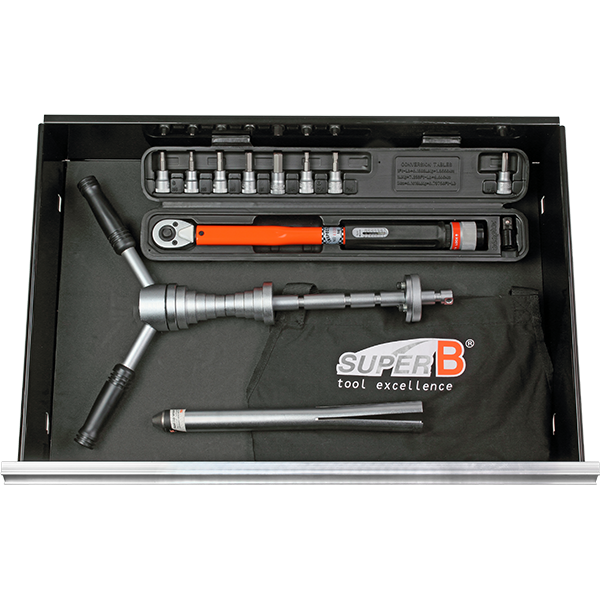

7th LAYER:


•G:

1-3/8" Dr. dial-adjust torque wrench 12~60 Nm with bit sockets: hex 4 / 5 / 6 / 8 / 10 mm, T25 / T30 / T40, adaptor 3/8" Dr. x 1/2" Dr.

1-Bearing cup press for most standard 1", 1-1/8", 1-1/4" and 1-1/2" headset cups.

1-Head cup remover for 1", 1-1/8" and 1-1/4" press fit external cups.

1-Heavy duty shop apron.
